• OBD2

    (Looking into Port)

    broken image

  • OBD1

    (Looking into Port)

    broken image

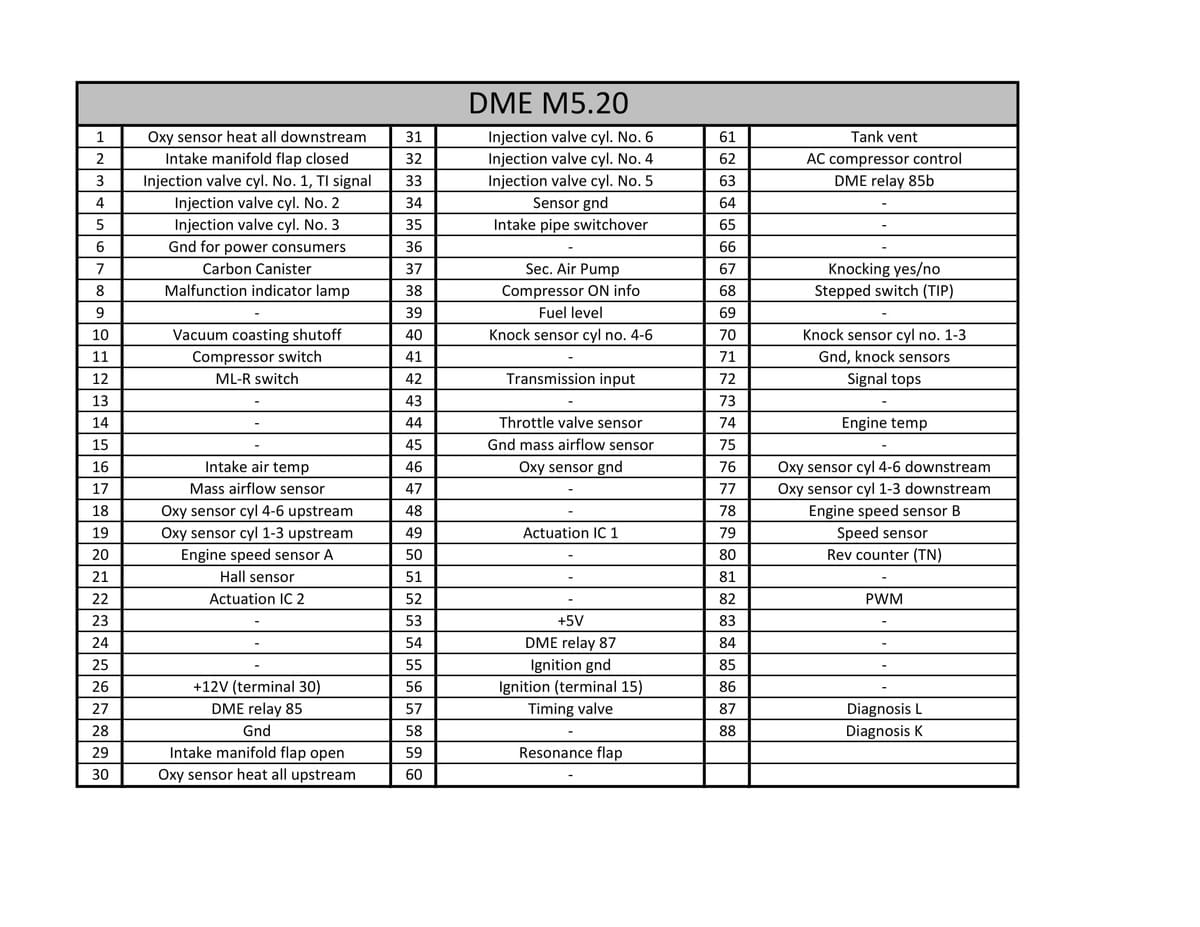

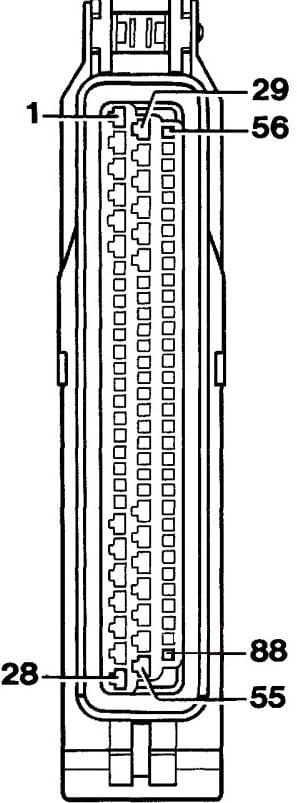

  • DME M5.2 ( 88pin )

    (Looking into Cable Plug)

    broken image
    broken image

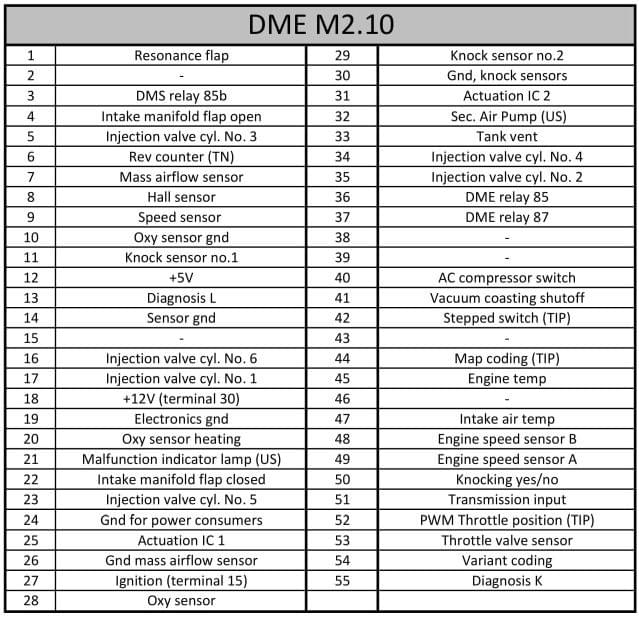

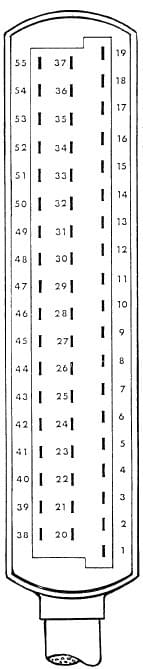

  • dme M2.10 ( 55 pin )

    (Looking into Cable Plug)

    broken image
    broken image

  • Alarm Control Unit ( ACU )

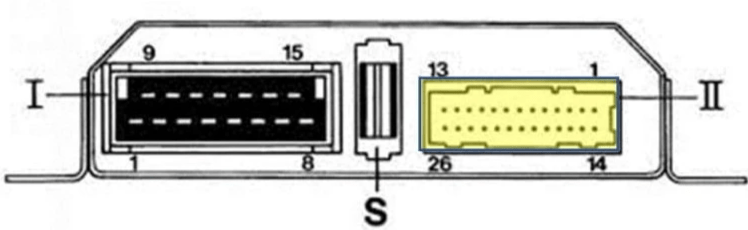

    ACU rear View

    broken image

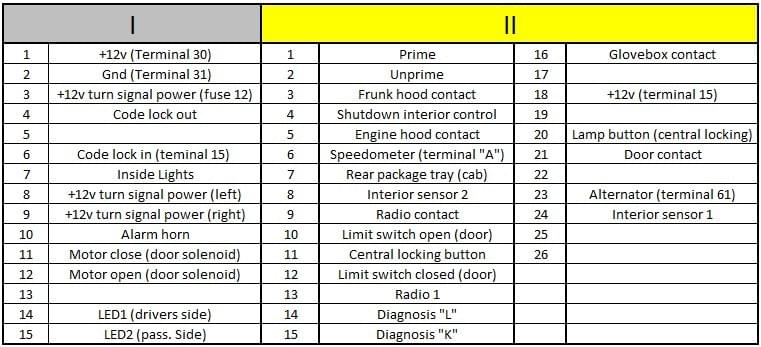

    ACU Pinout

    broken image

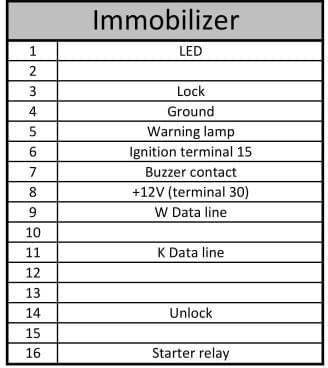

  • immobilizer

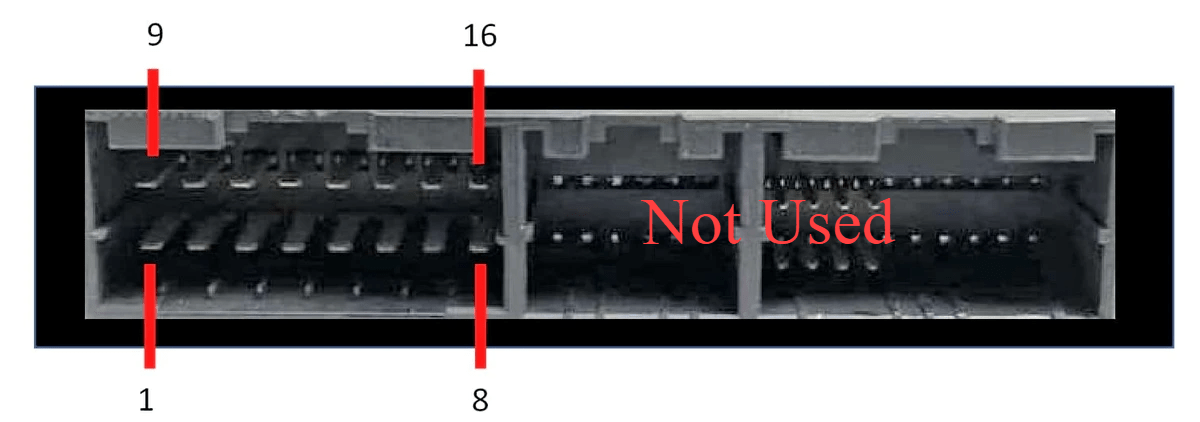

    Rear View

    broken image
    broken image
